HG-A8S VHF超高频专业收发器对讲机无线电双向调频收发机10W 15KM

商品属性

种类整机

货号74308

品牌HamGeek

频率范围136-174MHz/400-470MHz（MHz）

信道数16（个）

理论通讯距离1.5km-3km(3km)（km）

电池类型锂电池

重量420（g）

是否专利货源否

外形尺寸100 x 50 x 28mm/3.9 x 2 x 1.1

功能定位

工作电压7.4

商品描述

产品包装尺寸：26.5*18*6.5   重量：520g

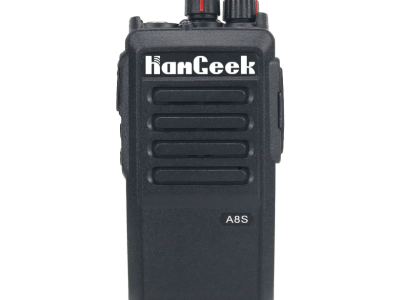

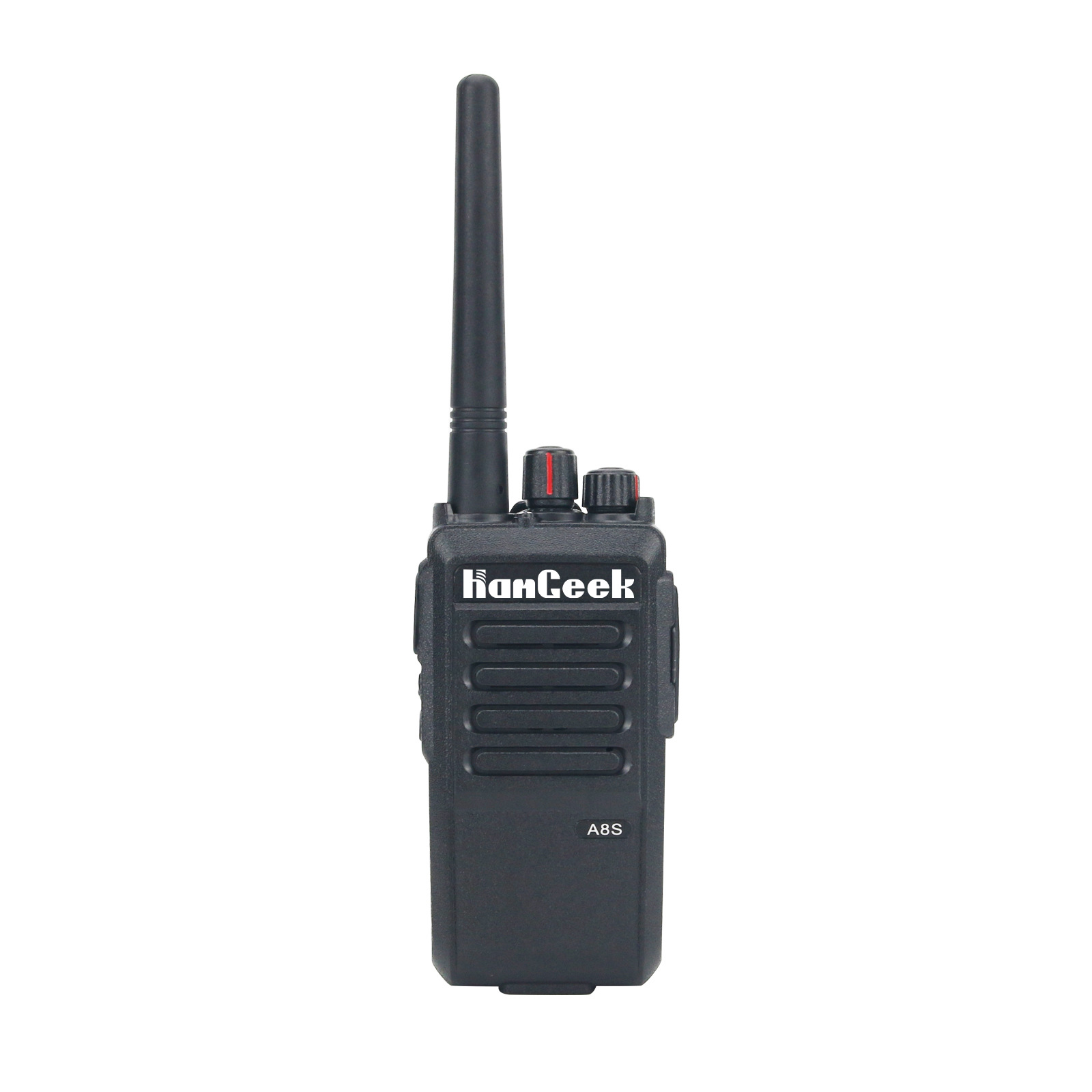

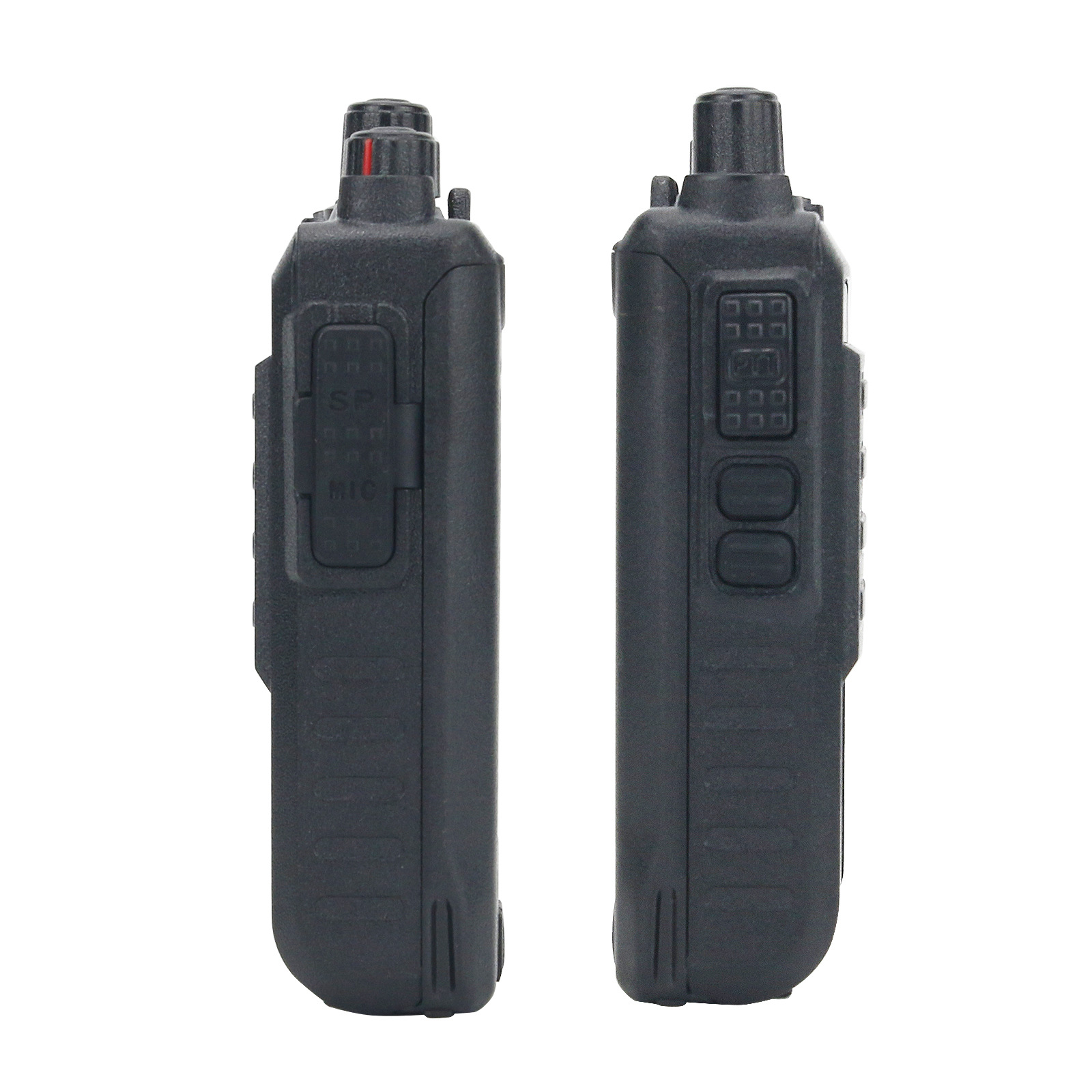

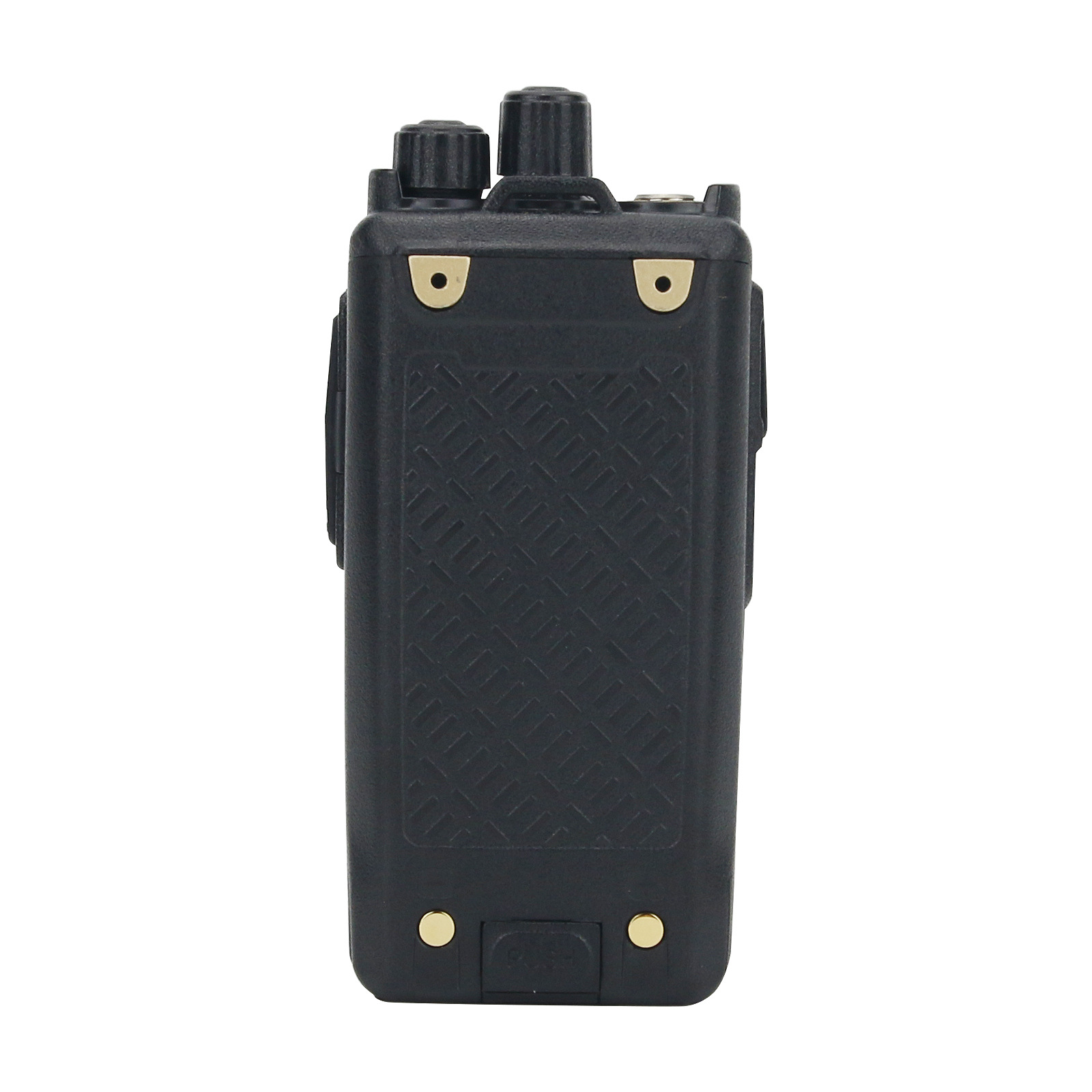

HamGeek HG-A8S VHF UHF Transceiver Walkie Talkie Professional FM Transceiver 10W 15KM Two Way Radio

Features:
- Light and slim body
- FM transceiver with voice prompt function
- Humanized design; Premium quality
- Energy-saving battery for long duration time
- Locking function during busy hours
-Voice control function, freeing your hands
- Stable signal transmission; clear call
- 10W high power, signal coverage range 2-15KM
- Lightweight body makes it easy to carry and use
- Strong penetrating power. Convenient for users in a 50-tiered building
- Suitable for hotels, shopping malls, real estate, tourism, etc.

Specifications:
General:
- Frequency range: 136-174MHz/400-470MHz
- Rated voltage: DC 7.4V (Li-ion lithium battery)
- Memorized channels: 16pcs
- Antenna configuration: loaded antenna
- Antenna impedance: 50Ω
- Working mode: same frequency simplex or different frequency simplex
- Grounding method: negative
- Size: 100 x 50 x 28mm/3.9 x 2 x 1.1"

Transmitter:
- Modulation method: FM
- Maximum frequency deviation: ≤ ±5KHz
- Residual wave radiation: < -60dB
- Pre-emphasis characteristics: 6dB per octave
- Emission current: < 1800mA

Receiver:
- Sensitivity: < 0.16μV (12dB SINAD)
- Squelch sensitivity: < 0.2μV
- Intermodulation anti-interference: 50dB
- Audio power: ≥ 300mW
- Receiving current: ≤ 100mA
- Squelch waiting: 20mA

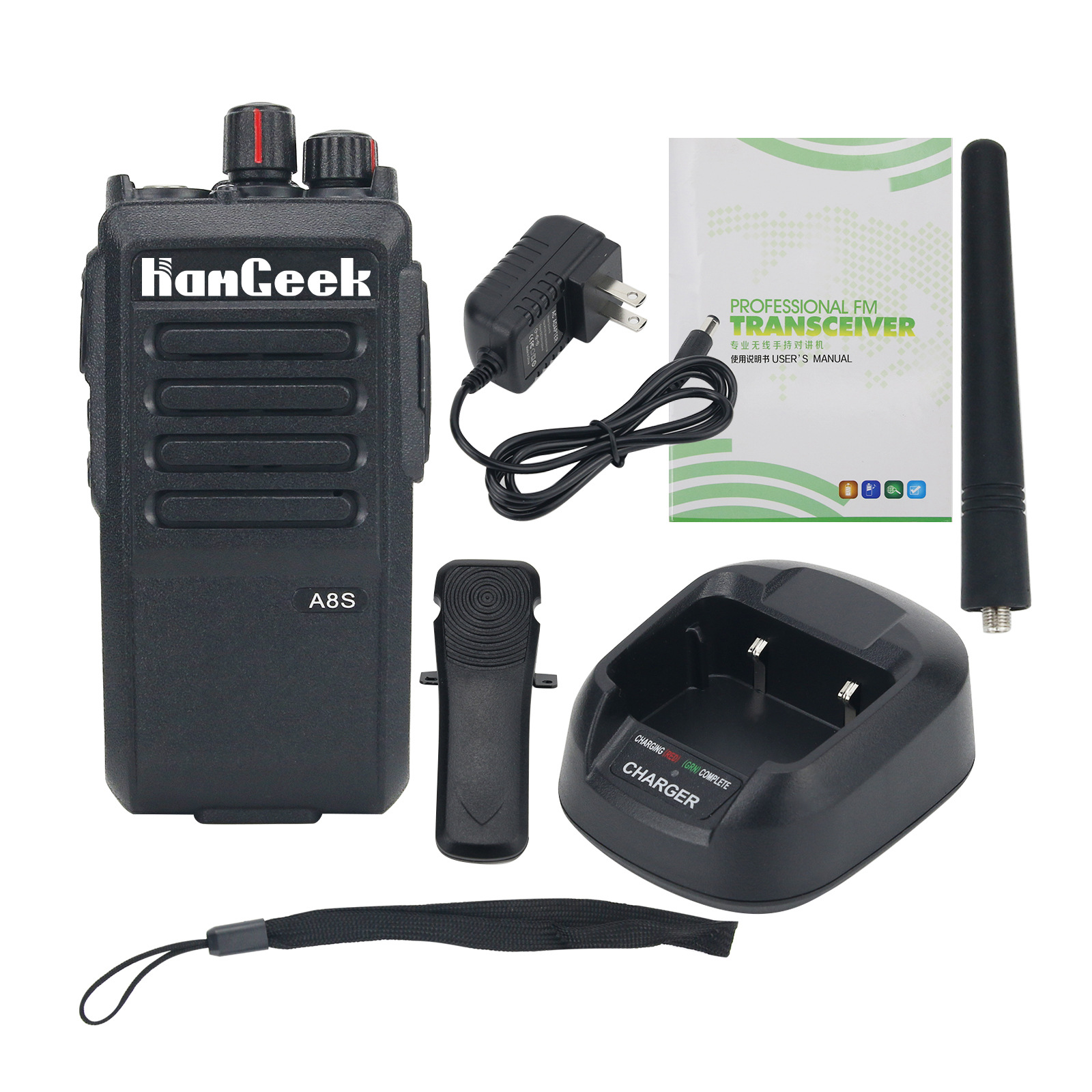

Package Included:
- 1 x Walkie Talkie Host
- 1 x Antenna
- 1 x Belt Clip
- 2 x Screws
- 1 x Hand Strap
- 1 x Battery
- 1 x Charging Dock (Charger)
- 1 x Power Adapter
- 1 x User Manual

产品详情实拍图：
